USB Camera MIC-5MD–High quality and good price
- Hardware advantages
1.Good quality with competitive price, the best suitable camera for your microscope..
- Five Mega high sensitive CMOS chip to restore every true color.

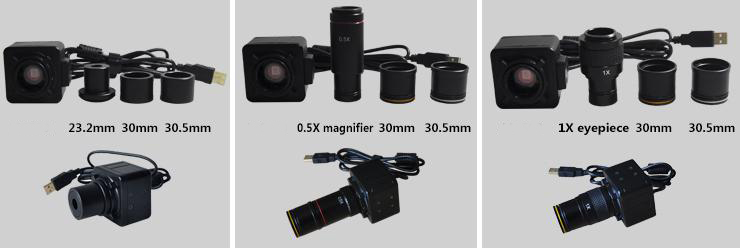

- Camera adapter has the best compatibility, standard C-mount joggle, optional ocular size 23.2/30/30.5mm,flexibly using for all different ocular microscopes.
- General appearance structure, total180g, very economic and durable, carrying with you easily on business trip.
- High speed USB joggle, insert and use, transferring images faster and steadier.
- Data USB cable accord with Universal Serial Bus Specification USB Revision 2.0 April 27, 2000 standard, tiny details design showing good quality.
- Software advantages

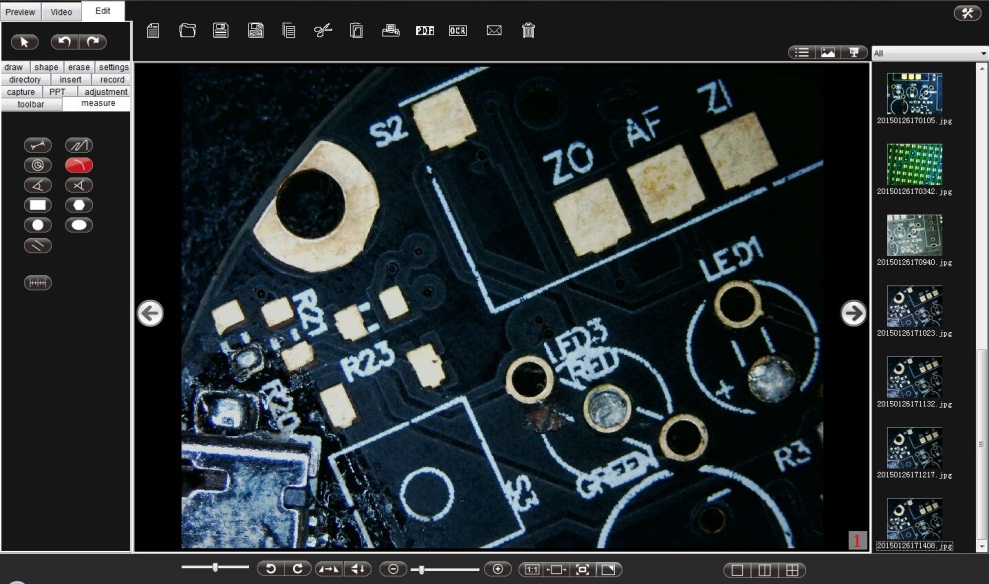

- Professional custom software MicroCam for windows, there are powerful functions to meet market’s need.
- 2.5K×2K high speed, high pixel preview , capture and video, showing big picture screen easily.
- Simply to save picture and video records, convenient to manager documents.
- Many languages interface, can OEM different languages.
- Dynamic and still annotations, powerful measure functions choice freely.
- Two split screens and four split screens display, being good for different observations’ comparison and analysis. 7.Fix-time continuous captured photo, high efficiently to track the whole changing process of observe things.
8.Rotate picture with any angle when preview, there is no request for placing observe things, put and photo.
- Creative image manage special effect, upgrade user’s vision experience feeling.
- Hardware device support hot-plug and hot-unplug when using software, it never stop working.
- Free software instruction
- PC computer user:Micro Cam, there are 200 functions including measure.
D. Specification
Product size | 50x50x51mm |
Package size | Single weight :300g, dimension: 15.5×11.5x7cm
20pcs/Canton:6.5kg, dimension: 56x31x16cm |
Sensitive Chip | 1/2.5”true color CMOS (5.70mm(H) x4.28mm(V), diagonal7.13mm) |
Tube size | C Port, Adapter ring(optional)23.2mm,D30mmor30.5mm |
Resolution | Max: 2592 x 1944( 5,038,848 Mega Pixel) |
Pixel size | 2.2μm x 2.2μm |
Dynamic range | 70.1dB |
A/D switch | 12-bit on chip,10-bit to pc |
SN Ratio | 38.1dB |
Spectral Range | 380-650nm(with IR filter) |
IR filter | 9x9x0.3mm(Lx W x H), IR: 650nm |
IR+UV+AR | The distance from sensor to IR+UV+AR is4.3mm |
Binning | 1 x 1,2 x 2 |
Exposure | 3.9ms – 320ms, auto/manual exposure |
White balance | Automatic White Balance |
Focus mode | Manual fine adjust, wide range auto-focus; |
Snapshot control API | Direct Show, UVC |
Observe methods | Still picture and video in real time |
Software Language | Chinese, English, Japanese, Swedish,Deutsch, accept OEM languages |
Image format Frame rate | YUV output: 640×480@30fps,800×600@20fps,1280×960@10fps,1280×720@10fps,2592×1944@5fps MJPG output: 640×480@40fps,800×600@40fps,1280×960@40fps,1280×720@40fps,2592×1944@15fps |
OS requirement | Microsoft® Windows® XP /Vista/ 7 / 8 (32 & 64 bit) |
Hardware requirement |
CPU: equivalent to Intel Core2 1.6GHz or higher Memory :2GB or higher USB port :USB2.0 High-speed port DVD-ROM(required when installing software) |
Operation software | Windows: MicroCam |
