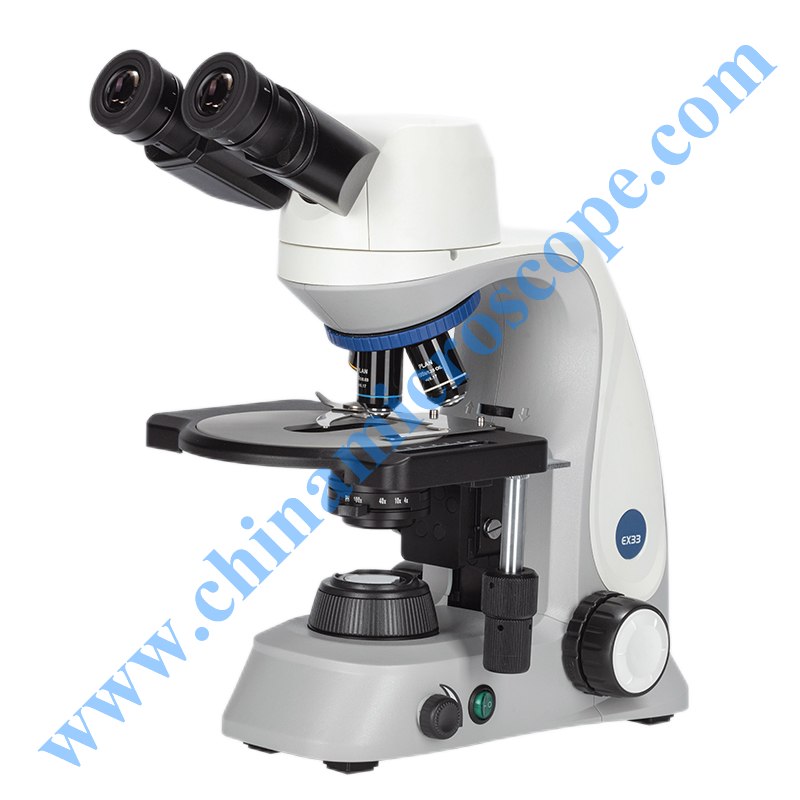

The MIC-EX33 series microscope biological, fluorescent, digital head models, fully meets the diverse observation demands, ensuring that users can easily and efficiently complete teaching research and clinical testing.
MIC-EX33 adopts infinite optical system, professional plan achromatic objective lens, presents high-resolution, high-definition, and high contrast microscopic images under any observation mode.
360 ° rotating observation tube: it has a wide range of pupil distance adjustment and a 360 ° hinge group rotation function, which can adjust pupil distance and eye point height, providing more comfortable experience for operators of different heights.
MIC-EX33 serials can be equipped with a front LCD display, which can show the magnification, lighting intensity color temperature and ECO status in real time, quick understanding of the current application environment, easy for the reproduction of the experimental environment.
Coded objective nosepiece: capable of remembering the brightness of each objective lens. The user can freely adjust the light source brightness of each objective lens, and the system automatically memorizes it, without having to adjust back and forth with the switching of magnification, which not only improves the work efficiency, but also reduces visual fatigue.
ECO energy-saving working mode: built-in ECO function, the system will automatically turn off the power to enter the standby state after 30 minutes none operation. And can automatically wake up the light source through the dimming knob, saving energy and reducing consumption.
Super large ceramic line rail platform: double-layer composite mechanical mobile platform, large arc shape, no corner design. The table top is made of ceramic paint with high hardness, corrosion resistance and damping double slides design. Two slides can be placed at the same time to facilitate inspection and comparative analysis.
Low hand position: low hand position reduces operating fatigue and improves comfort. The fully hidden locking design eliminates all sharp edges, and the coarse and fine focus knob and platform adjustment knob can be operated with one hand at the same time.

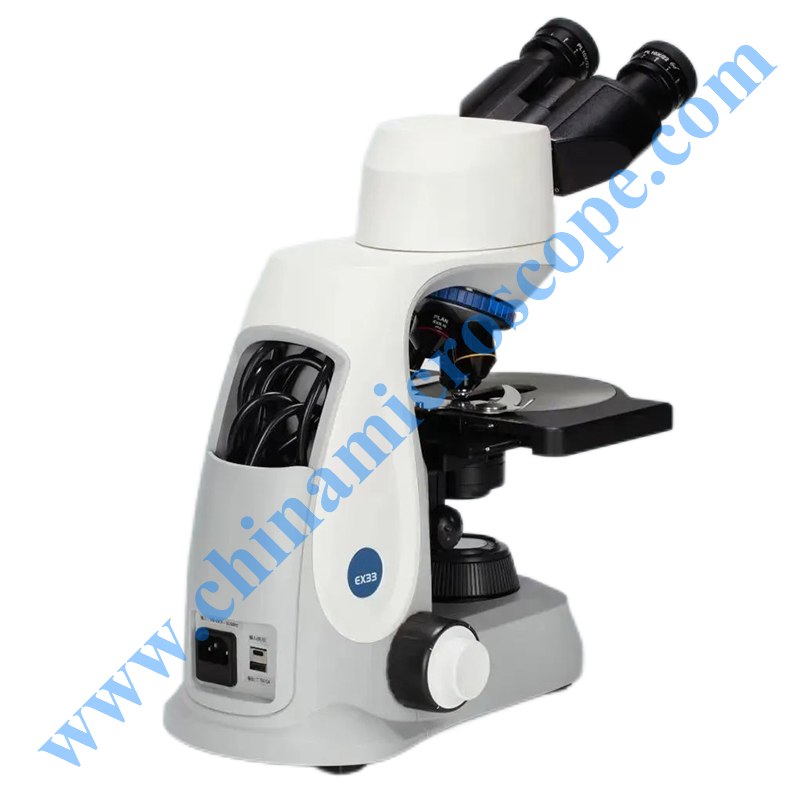

Simple wire harness storage: the back of the machine body is equipped with a storage space that can store the power cord and charging device to ensure the cleanness of the machine and the worktable. The overall shape is small and beautiful, saving storage space and improving portability.
Super power endurance: Type-c interface is reserved on the body, which can be used as the microscope power supply to power the microscope. It is convenient for you to use outdoors or in the power failure state, and get rid of the dependence of the microscope on the power socket.
In addition, the body comes with a standard USB interface, which can also be used to charge the mobile phone or tablet through a microscope.
| Optical system | MIC-EX33 serials biological microscope |
| Head | Binocular head 30°inclined, 360° rotatable, rotatable, interpupillary distance 48-76mm, eye point height adjustable 375-428.5mm |
| Trinocular head,30°inclined, 360° rotatable,
rotatable, interpupillary distance 48-76mm, beam splitting ratio R:T=8:2 OR 5:5,eye point height adjustable 375-428.5mm |
|
| Digital head, 30°inclined, 360° rotatable,
rotatable, interpupillary distance 48-76mm, eye point height adjustable 375-428.5mm Built in 6.3MP, 12MP, 20MP different pixel camera module, USB3.0 output |
|
| Digital head, 30°inclined, 360° rotatable,
rotatable, interpupillary distance 48-76mm, eye point height adjustable 375-428.5mm Built in 6.3MP, 12MP, 20MP different pixel camera module, WIFI or RJ45 WAN output, Support remote picturing, support Hotspot/Client module switching,support multi-viewing module |
|

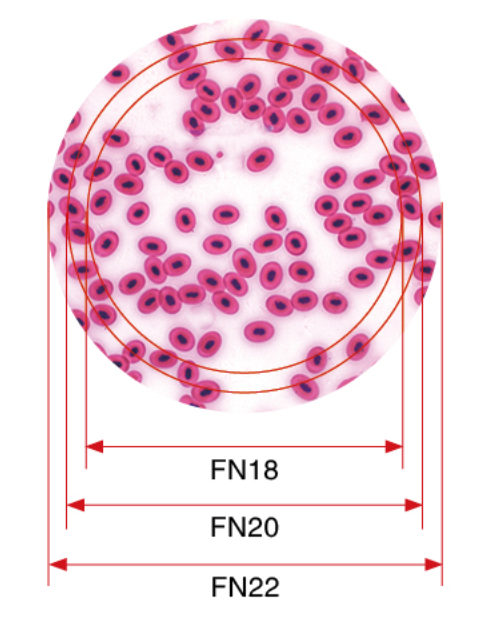

| Eyepiece | Wide field plan eyepiece PL10X/20mm, diopter adjustable. Micrometer optional |
| Wide field plan eyepiece PL10X/22mm, diopter adjustable.Micrometer optional | |
| Objective | Infinite plan achromatic objective 2X、4X、10X、20X、40X、60X、100X |
| Infinite plan positive phase contrast objective 10X、20X、40X、100X | |
| Infinite plan fluorescence objective 4X、10X、20X、40X、100X | |
| Nosepiece | Reversed quintuple nosepiece |
| Reversed quintuple nosepiece with memorizing function | |
| Focusing | Low position coaxial coarse and fine adjustment, Coarse adjustment range 25 mm
precision of fine adjustment:2um with locking system |
| Stage | 210mmX171mm double layer mechanical stage, double stage clips, moving range 78mm×51mm; precision:0.1mm（Triangle Guide） |
| 210mmX171mm double layer mechanical stage, double stage clips, moving range 78mm×51mm; precision:0.1mm （X single line rack-less moving, no gear parts, stage surface with resistant and corrosion resistant treatment | |
| Transmitting lighting system | MIC TECH fly-eyes-lens N.A.1.25 condenser (with slide type PH, dark field interface) condenser center preset-ted, up-down function is optional. Auto wide voltage 100-240v, single 3W LED high brightness bulb(cold-warm color to be chosen), light temperature 4750K-5500K, warm color temperature 2850K-3250K
5W LED optional, ECO system optional, LCD display optional |
| C mount | 0.35X/0.5X/0.65X/1X C-mount, focus adjustable |
| Other optional | Polarizing kits, filters, PH slides, dark field slides. |
