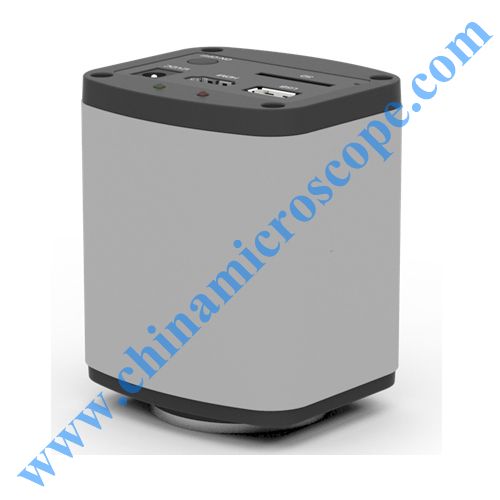

MIC-HD 5MP CMOS USB 2.0, SD, HDMI microscope camera
|Preview Resolution||5MP (2592×1944)|
|Capture Resolution||5MP (2592×1944)|
|Video Recording||15fps@SD 15fps@PC|
|Setting||White Balance,Exposure Time,
|Built-in Software||Cloud 1.0 Ver|
|PC software||Mosaic V2|
|Optical interface||Windows 7/8/10(32/64bit)|
|Optical Port||Standard C-Mount|
With brand new 5MP CMOS sensor can capture more details of the sample, offer you the best image quality
Inner fixed mouse control microscope camera

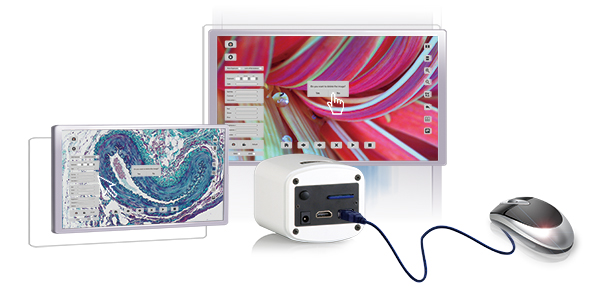

MIC-HD can be controlled directly with display with HDMI interface, faster than normal USB camera over 4 times.
It realize the perfect color recovery of the image, the image show in display is exactly what you see from the microscope, uncompressed data transmission makes your real scientific image resolution. Automatic capture of the image for analysis, best white balance, exposure, and saturation makes you perfect image. All automatic capture best image no matter in bright field, polarizing in dark field or crystal image.
The software just has two buttons.
MIC-HD is so convenient that you do not even need to click one button. The software window just has two buttons, one is photography, another is setting, as simple as your smart phone.
Exposure, based on automatic exposure, HDMI camera has full exposure, DBI setting is available, customers can set from 1MS to 10S exposure time, DBI has 20 steps adjustable.

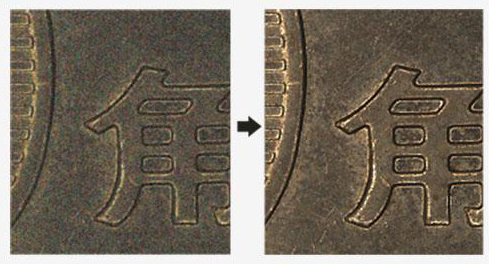

Long exposure time makes increase of the noise, but MIC-HD camera has 3D DNR function which makes the image clear and sharp, the following is the comparison with 3D DNR image.

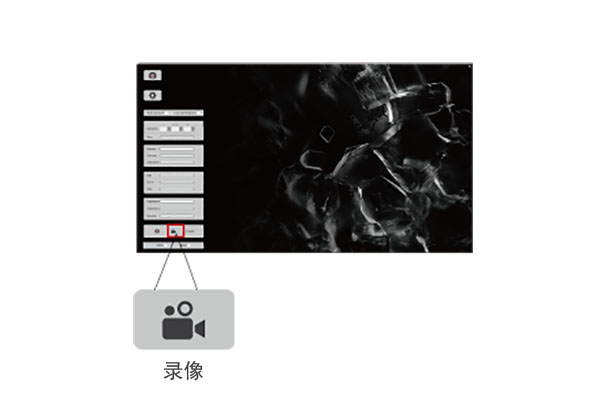

1080P video recording
Press the button can make 1080P 15fps video recording. File will be saved in high speed SD card, and you can replay it too.

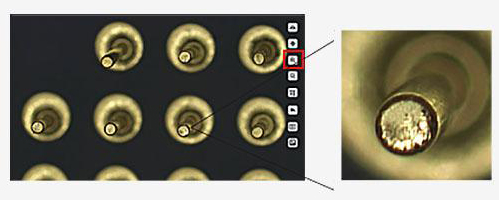

ROI function for magnifying details
On the right column of the windows there is a serials buttons, you can overturn, rotate the image, meanwhile ROI magnifying function helps you for details view.

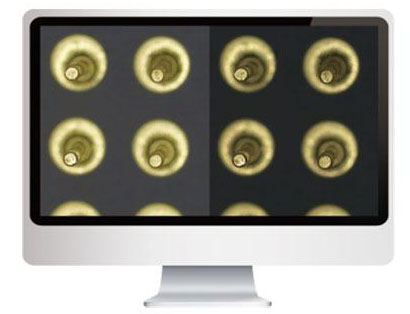

Image comparison function
In the setting, choose the images you want to compare, you can even move the image position, choose ROI area to compare with dynamic images.
FPGA duel core processor
MIC-HD is using creative FPGA duel core processor, FPGA1 high resolution image processor and FPGA2 image output processor, grantee the best image for you.
