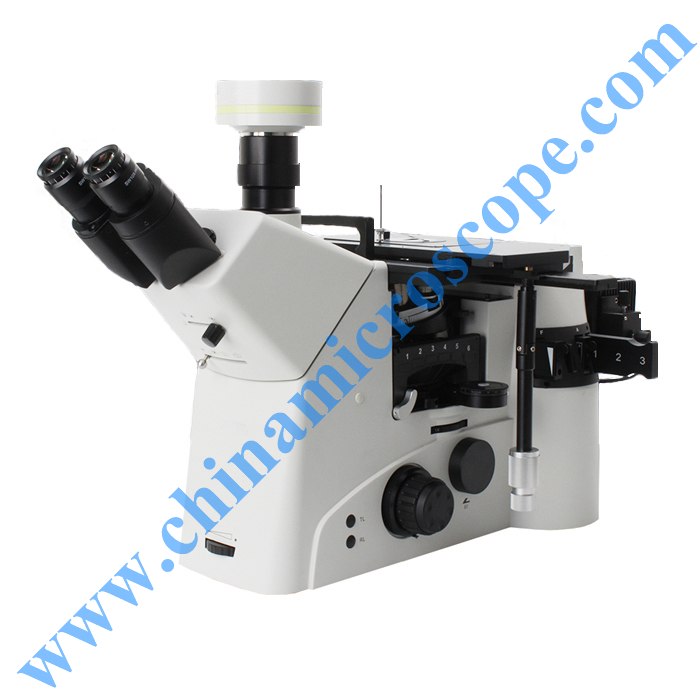

XJP-8A inverted DIC fluorescent metallurgical microscope

MIC TECH’S new advanced XJP-8A inverted bright & dark field metallurgical microscope is designed with infinite optical system,wide field eyepiece and long working distance bright & dark field infinite plan objectives and polarization device.As a large scientific research level metallurgical microscope,it meets the demand of all kinds of physio-chemical analysis and inspection.It can be equipped with microscopic photography & video and image analysis system.The instrument can be used in metallurgic examination and analysis and the research work of surface coating,crack and so on.

ENQUIRY!
分类： , , , 标签： , , ,
描述
Parts Order No. Specification XJP-8A
Frame XJP-8A Humanity Design, Stable Reliable. ●
UCIS Infinity Independent Achromatic Optical Design.
Wide voltage, 110-240V,50/60Hz.
Seidentopf MS1 Binocular Tube, Interpupillary distance 47-78mm, ●
Observation 45°inclined diopter adjustable.
Tube MS1AT Trinocular Tube, Interpupillary distance 47-78mm, ○
45°inclined diopter adjustable.
E1022PC Plan Eyepiece, WF10X/22, and diopter adjustable. ○○
E1025PA Plan Eyepiece, WF10X/25 ○○
Objectives WB-P4C  infinity plan working distance B&D objective ○
 5×/0.15（W.D.14.47mm）
 10×/0.25（W.D.16.01mm）
 20×/0.40（W.D.10.5mm）
 50×/0.55（W.D.5.1mm）
/ M-OLPi10 10×infinite long distance plan objective ●
NA=0.25  WD=18.48
M-OLPi20 20×infinite long distance plan objective ●
/ NA=0.40  WD=8.35
/ M-OLPi40 40×infinite long distance plan objective ●
NA=0.65  WD=3.895
/ M-OLPi50 50×infinite long distance plan objective ●
NA=0.70  WD=7.9mm
/ M-OLPi80 80×infinite long distance plan objective ●
NA=0.80  WD=0.848
/ M-OLPid10 10×infinite long distance plan dark field objective ●
NA=0.25  WD=18.48
/ M-OLPid20 20×infinite long distance plan dark field objective ○
NA=0.40  WD=8.35
/ M-OLPid40 40×infinite long distance plan dark field objective ●
NA=0.65  WD=3.895
/ M-OLPid50 50×infinite long distance plan dark field objective ○
NA=0.70  WD=1.95
/ M-OLPid80 80×infinite long distance plan dark field objective ○
NA=0.80  WD=0.848
Lamp House DX10 12V100W Halogen Lamp House ●
Power Box DYX4 12V100W Halogen Power Box ○
DYX2 12V50W Halogen Power Box ●
Stage ZT1 Fixed Stage, Size: 240mmX260mm, ○
Movement Range: 135mmX85mm.
X/Y Coaxial Flexible Knobs On The Bottom Side.
ZT1-1000 Specimen Holder(φ118) ●
ZT1A Mechanical Stage, Size: 350mm×208mm, Movement Range: 50mmX50mm. ●
Specimen YPQ1 Specimen Clamps ○
Clamps
Revolving ZQ580A Sextuple Revolving Nosepiece, ●
Nosepiece
Illuminator DLST1 Multifunctional Reflected Light Illuminator ●
JXMKBG Brightfield Module ●
Filter LA3-0011 Blue Filter ●
LU3-0011 Green Filter ●
LH3-0011 Yellow Filter ●
LAB3-0011 50% Cutting Filter ●
Polarization PQ2 Polarizer ●
Kits PY3 Analyzer ●
C-Mount SX1 0.5X C-Mount ●
SX5 0.25X C-Mount(Fit 1/3’CCD) ○
Illumination BZ-0022E 12V50W Osram Halogen Bulb ○
Bulb BZ-0022D 12V50W Halogen Bulb ●●●
Other BZ-0023A 250V/5A Φ5X20 Fuse ●●●
OMMM Metallurgical Micrometer ●
DLSS1-0029 Diaphragm Adjusting Handle ●●
BZ2-0018 φ2mm Allen Screw Driver ●
BZ1-0018 φ2.5mm Allen Screw Driver ●
BZ1-0018A φ3mm Allen Screw Driver ●
BZ-0021 Power Cord ●
其他信息
microscope function

Infinite, Inverted, Dark filed, DIC, Polarizing, PH, fluorescent
