JTC300 Digital Projector

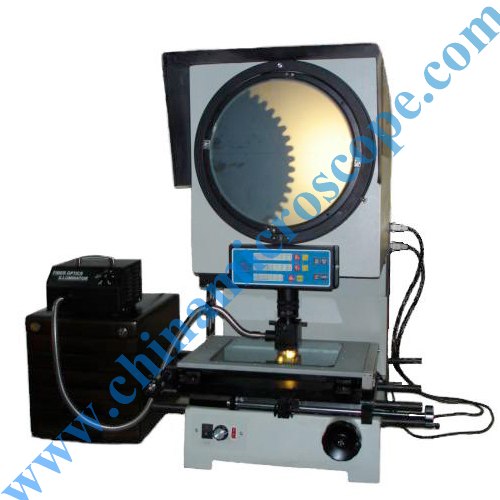

JTC300 digital projector is a kind of optical measure instrument to measure geometrical elements of tested object in the method of coordinate measuring and figure comparative measuring. It is direct, precise and effective. By the way of transmission and reflection illuminating, it can measure length, angle, figuration and surface of tested parts, especially suitable for examining small or composite parts, such as horologe component, templet, die, knife, etc. Projector is one of common-use instruments in factory, mine, enterprise, measure room, senior academy, and science research. It is equipped with data output interface to contact to computer to carry on corresponding planar measuring program, further convenient to calculate measured data and enlarging use range.
Rotary range: 360°gyration-type
Angle measuring digital display Min. displayed value: 1′
Precision of angle measuring displayed value: 6′
2. Objective lens
|Magnification||Objective view field||Working distance(mm)|
- Worktable distance(mm):
X-coordinate 0-150 Min. displayed value 0.001
Y-coordinate 0-50 Min. displayed value 0.001
Z-coordinate 0-80 （Focusing distance 50）
- Illumination lamp-house
Transmission illuminating: 24V 250W Bromine tungsten lamp
Reflection illuminating: 24V 250W Bromine tungsten lamp
Length unit may display in metric system or British system according to need. It is equipped with X/Y data input interface to contact to microcomputer and expend its function by using measuring software, also equipped with circulate worktable and finial bracket for choosing.
