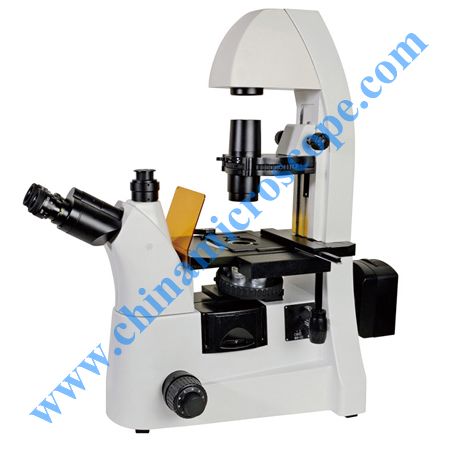

MIC-FM microscope can offer two camera or TV mount according to customer’s different application.
ICS optical design for the image output.
High thermal and mechanical stability
Ergonomic design, tilting head, instrument specification LCD touch screen or can connected to TFT screen, easy to get outcome.
Eyepiece WF10X/23MM
Light control, reflecting controller
־ six points motor-driven digital nonspiece.
־ 8 points motor-driven digital fluorescence turret (can be fixed or taken out)
־five points filter wave length turret
־five points motor-driven digital zoom turret
־ motor-driven aperture diaphragm and motor-driven filed grating
־ HAL 100, HBO100, HBO 50 illumination
־ all functions of microscope is motor-driven （Z1）
Compatible list
- Motor-driven 2. Coding system can be read by computer 3. LCD display
- CAN 5. RS232 6. USB 7. Out fixed shutter mount 8. Shutter trigger mount
- Optical management 10. Observation method management
- Motor-driven, stepper motor driven (Z axis 50nm) Stage X ,Y axis stepper motor driven (XY axis 10-0.2μ,press button to focus automatically. )
- Automatic identification system nosepiece
- Automatic identification system reflecting light turret
- Automatic identification system zoom turret
- Automatic identification system filter turret

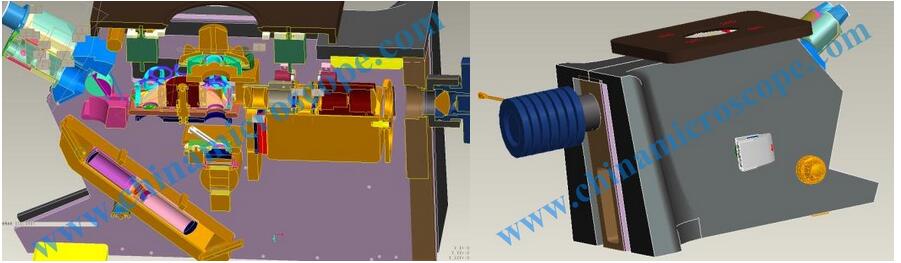

System optical scheme

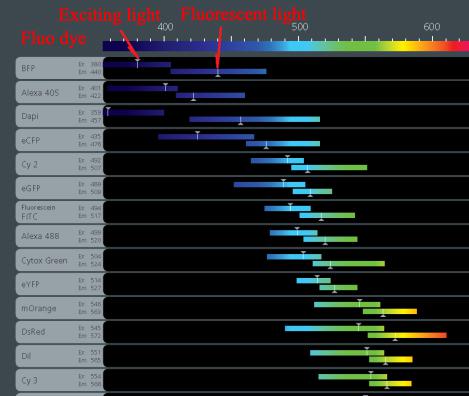

| Filter module
number |
Exciter | Exciter range | Dichroic splitter | Cut filter |
| A
D E4 H3 I3 K3 L4 M2 N2.1 TX G/R B/G/R |
UV-light
UV-purple light Blue light Blue light Blue light Blue light Blue light Green light Green light Green light Blue Green light UV/blue/green light |
BP340-380
BP355-425 BP400-450 BP420-490 BP450-490 BP470-490 BP450-490 BP546/14 BP515-560 BP530-595 BP490/20 BP575/30 BP400/20 BP495/15 BP570/30 |
RKP400
RKP455 RKP455 RKP510 RKP510 RKP510 RKP510 RKP580 RKP580 RKP600 RKP505 RKP600 RKP415 RKP510 RKP590 |
LP425
LP470 LP470 LP515 LP515 LP515 BP515-560 LP590 LP590 LP615 BP525/20 BP635/40 BP530/30 BP640/40 BP610/75 |
Z-drive spec Description
Blacklash ＜0.2μm
Coarse adjustment torque: 10Ncm+/-1Ncm
Fine adjustment torque: 0.7Ncm+/-（0 ~0.2）Ncm
Locking force: 5N+2N
descending speed: ＜0.5μm /2min @ 2kg weights
Focusing bounce-back＜3μm @ 2.5N
Focusing range: 11mm+/-1mm
Focusing toruqe: 110N-120N
Resolution:0.002mm
Stage Description
flatness≤0.05mm @ 120*50mm, for other area ≤0.1mm
XY knobs torque in X-direction 1.2+/-0.3Ncm, torque in Y-direction 1.5-1.8Ncm
Travel range: 76*52mm min for limit stop, 76*63mm min for no limit stop
Travel parallelism: E/W≤0.026mm @ 40mm, N/S≤0.013mm @20mm
Distance between slide and stage during travel: -0.1~+0.1mm
Rotating angle: total angle 115°+/-2°, clockwise 110°+/-1°counterclockwise: 5°+/-1 for rotatable stage
Focus fluctuation: 0.020mm max. when rotating for rotatable stage

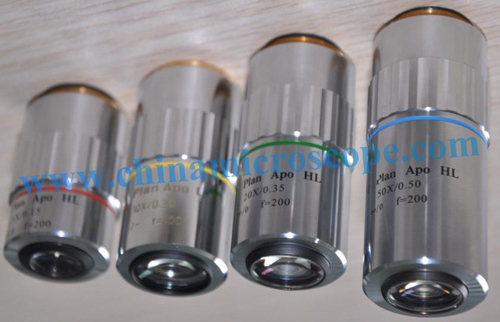

M plan Apo f=200/∞ 95mm
| 5X N.A=0.15
Focal length,f'(mm)=40mm Resolving Power R(um)=2.3 Depth of Focus,±ΔP(um)=15 Working Distance W.D.(mm)=44 FN Eyepiece,Φ24(mm)=4.8 FN 2/3″CCD V×H(mm)=1.76×1.32 FN 1/2″CCD V×H(mm)=1.28×0.96 |
10X N.A=0.3
Focal length,f'(mm)=20mm Resolving Power R(um)=1 Depth of Focus,±ΔP(um)=3.5 Working Distance W.D.(mm)=34 FN Eyepiece,Φ24(mm)=2.4 FN 2/3″CCD V×H(mm)=0.88×0.66 FN 1/2″CCD V×H(mm)=0.64×0.48 |
| 20X N.A=0.35
Focal length,f'(mm)=10mm Resolving Power R(um)=1 Depth of Focus,±ΔP(um)=3.5 Working Distance W.D.(mm)=29 FN Eyepiece,Φ24(mm)=1.2 FN 2/3″CCD V×H(mm)=0.44×0.33 FN 1/2″CCD V×H(mm)=0.32×0.24 |
50X N.A=0.5
Focal length,f'(mm)=4mm Resolving Power R(um)=0.6 Depth of Focus,±ΔP(um)=1.1 Working Distance W.D.(mm)=17 FN Eyepiece,Φ24(mm)=0.48 FN 2/3″CCD V×H(mm)=0.176×0.132 FN 1/2″CCD V×H(mm)=0.128×0.096 |

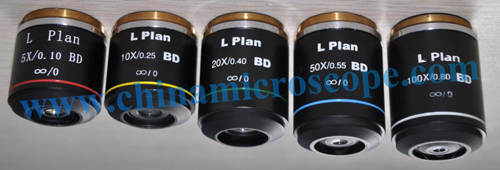

Long Working Distance Plan Achromatic (Infinite)BD (Bright field/Dark field)
MIC-W8BD-5X M plan Achromatic 5X N.A=0.1 W.D=14.47mm F.N:Φ24 Cover glass thickness:–
MIC-W8BD-10X M plan Achromatic 10X N.A=0.25 W.D=16mm F.N:Φ24 Cover glass thickness:–
MIC-W8BD-20X M plan Achromatic 20X N.A=0.4 W.D=10.5mm F.N:Φ24 Cover glass thickness:0
MIC-W8BD-40X M plan Achromatic 40X N.A=0.6 W.D=5.4mm F.N:Φ24 Cover glass thickness:0
MIC-W8BD-50X M plan Achromatic 50X N.A=0.55 W.D=5.1mm F.N:Φ24 Cover glass thickness:0
MIC-W8BD-100X M plan Achromatic100X N.A=0.8 W.D=3.01mm F.N:Φ24 Cover glass thickness:0

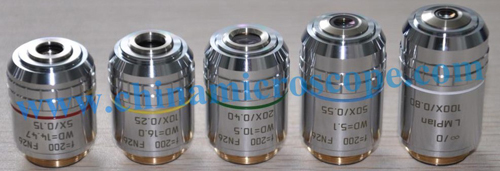

Long Working Distance Metallurgical Plan Achromatic (Infinite)
MIC-W8-5X M plan Achromatic 5X N.A=0.15 W.D=14.47mm F.N:Φ24 Cover glass thickness:–
MIC-W8-10X M plan Achromatic 10X N.A=0.25 W.D=16mm F.N:Φ24 Cover glass thickness:–
MIC-W8-20X M plan Achromatic 20X N.A=0.4 W.D=10.5mm F.N:Φ24 Cover glass thickness:0
MIC-W8-40X M plan Achromatic 40X N.A=0.6 W.D=5.4mm F.N:Φ24 Cover glass thickness:0
MIC-W8-50X M plan Achromatic 50X N.A=0.55 W.D=5.1mm F.N:Φ24 Cover glass thickness:0
MIC-W8-100X M plan Achromatic 100X N.A=0.8 W.D=3.01mm F.N:Φ24 Cover glass thickness:0
Biological Plan Achromatic (Infinite)
MIC-W3-4X Plan Achromatic 4X N.A=0.1 W.D=29.4mm Depth of field:115 F.N:Φ24 Cover glass thickness:–
MIC-W3-10X Plan Achromatic 10X N.A=0.25 W.D=16.0mm Depth of field:18.4 F.N:Φ24 Cover glass thickness:–
MIC-W3-20X Plan Achromatic 20X N.A=0.40 W.D=3.0mm Depth of field:6 F.N:Φ24 Cover glass thickness:0.17
MIC-W3-40X Plan Achromatic40X N.A=0.65 W.D=0.63mm Depth of field:2 F.N:Φ24 Cover glass thickness:0.17
MIC-W3-100X Plan Achromatic 100X N.A=1.25(oil) W.D=0.35mm Depth of field:0.7 F.N:Φ24 Cover glass thickness:0.17
Polarizer specification
Polarization direction: 0/-0.5°
Repeatability of polarization direction: ＜0.5°
Analyzer spec
Polarization direction: 90°+/-0.5°
Repeatability of polarization direction: ＜0.3°
Adjusting range: 180°+/-0.5°
Image fluctuation when installation: TBC
Image fluctuation when rotation≤0.2mm
| Type | Specification | ||
| Overall
spec |
Functional
spec |
Application level | Research-level |
| Objective function | Plan&achromatic, oil | ||
| Contrast method | Dark,bright,FL, DIC,Pol,PH | ||
| Illumination function | TI,II,LED | ||
| Observe function | Wide FOV | ||
| Stage function | Auto Controls | ||
| Focusing function | Auto focusing-drive, coarse and fine | ||
| Assistant function | CDA | ||
| Extendable function | Camera compatible | ||
| Performance
spec |
Objective
performance |
PLAN 4X NA=0.10;10X,NA=0.25;
20X,NA=0.40 N PLAN 40X,NA=0.65;100X,NA=1.25 oil |
|
| Illumination
performance |
CL/PH 0.9 1.25 oil CLP/PH 0.85 ,LED 4500K | ||
| Observe performance | Eyepiece: 10X/20,10X/22 | ||
| Stage performance | X direction≥60 mm;Y direction≥60 mm | ||
| Focusing
performance |
Distinguish ability: 0.0005-0.00005 mm,
Adjusting range: 10mm |
||
| Life time | 10 years | ||
| Other | TBC | ||
| Component
spec |
Major optical
system |
Objective | |
| Condenser | |||
| Illumination | |||
| LED | |||
| Eyepiece | |||
| Mechanical
system |
Stage | ||
| Stand | |||
| Z-drive | |||
| Objective turret | |||
| Camera module | |||
| Incident
illumination module |
Industry axis | ||
| Polarization axis | |||
| Florescent axis | |||
| Electric system TBC | |||
| Software system TBC | |||
| Accessories | |||
