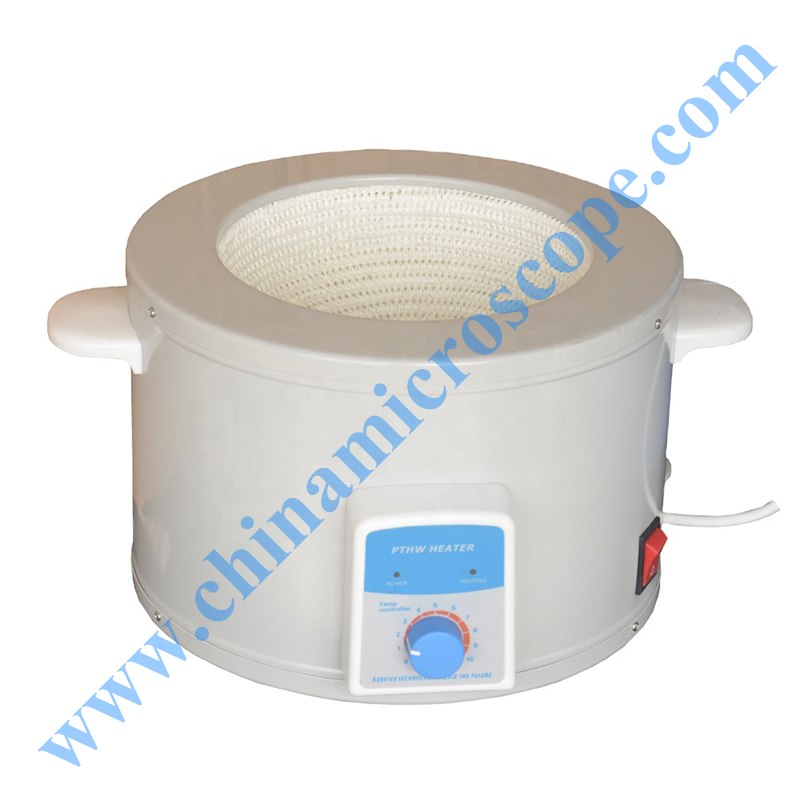

MIC TECH heating mantles made of alkali-free glass fiber insulation material, the Cr20Ni80 alloy wire spring installed in them, with aluminum silicate cotton by the vacuum shape of the hemispherical insulation body insulation. Each mantle is made with extreme care and is hand sewn to assure its reliability, quality and safety. Maximum heat transfer to the sample is achieved by having excellent insulation around the cartridge and good flask coverage. MIC TECH mantles go through the ‘burn off’ procedure at the end of the manufacturing process enabling use straight out of the box.
And our mantle including stirring heating mantle ZNCLTS series , ZNCLT series, TWCLT series ,single heating mantles ZNHW series , ZNHW-II series, PTHW series , multi- position stirring and without stirring heating mantle , both can be digital display and analog for each units . Offered in a wide range of sizes to accomodate large flasks to small beakers, these heating mantles are CE certified. OEM also available for us. Can be widely used with hotplate stirrers, glasswares ,reaction bath for heating and Fractional distillation in schools , institutes, Large chemical plants and ect.
Main Feature
Temperature Range
ambient to 380 degree, digital display , +/- 1 accuracy , PID control
TECHNICAL SPECIFICATION
| Model | ZNHW |
| Capacity (mm) | Any volume for or flat round bottom flask |
| Heating Temperature Range ( ) | Ambient to 400 degree |
| Temperature Control | PID . Inner and Outer Temperature sensor ,LED Display |
| Temperature Range | Ambient to 380 |
| Temperature Display | +/- 1 degree |
| Permissible Ambient Temperature | Ambient Temperature to 40 degree |
| Voltage | 110v – 240v |
| Power(w) | 220 W |
| Temperature Accuracy | ±1 degree |
| Stirring Flask Capacity (ml) | 500ml—upto difference model |
| Packing Dimension (mm) | 480 × 320 × 200 —upto difference model |
| Shipping Weight (kg) | 1. 5 kg—upto difference model |
| Shell material | Superfine metal |
