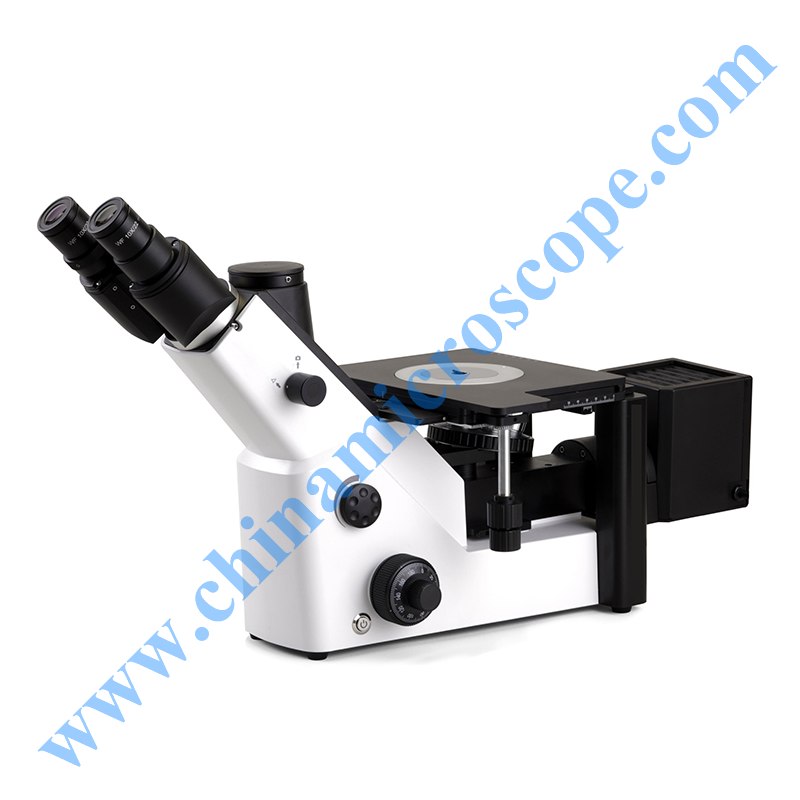

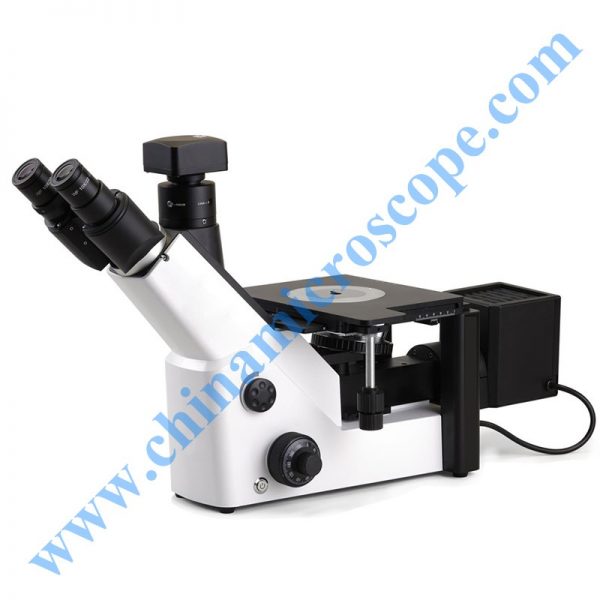

MIC-L2000 serials inverted metallurgical microscope has wide field eyepieces and simple polarization observation device, the Kohler illuminator is used in the transmitted and reflected illuminating system, the whole field is clear and uniformity. It is suitable for inspecting, such as semiconductor silicon wafer, LCD floor plate, electrocircuit plate, solid powder and all kind of industry sample that translucent or opaque. It is the ideal instruments in research work in biology, metallography, mineralogy, precision engineering, electronics, etc.
- Infinity-corrected optical system. Large vision, high imaging quality & resolution

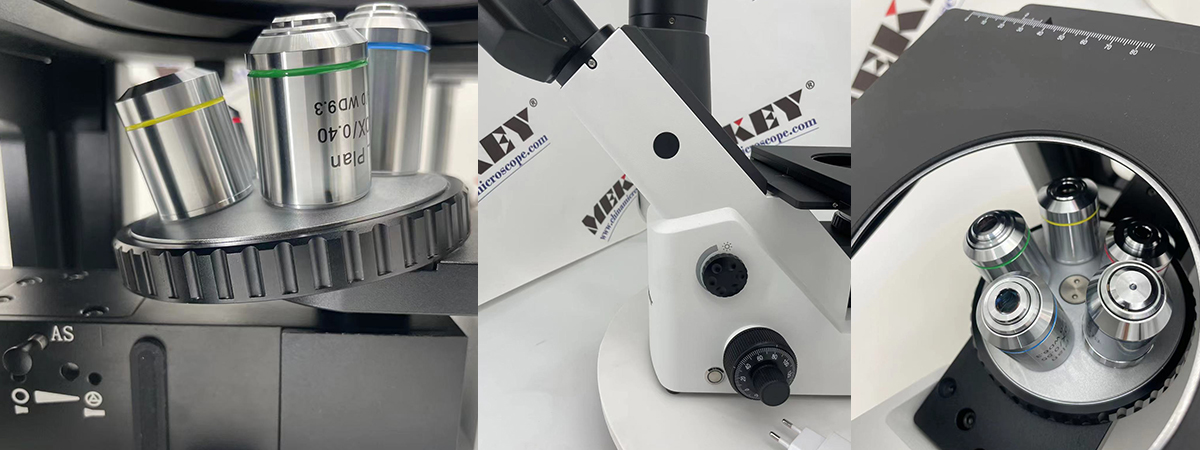

- 5pcs holes for Infinity LWD Plan Objectives : 5× ~ 100× (Dry)
- Wide field eyepiece 10x /φ22mm (Optional φ23mm)

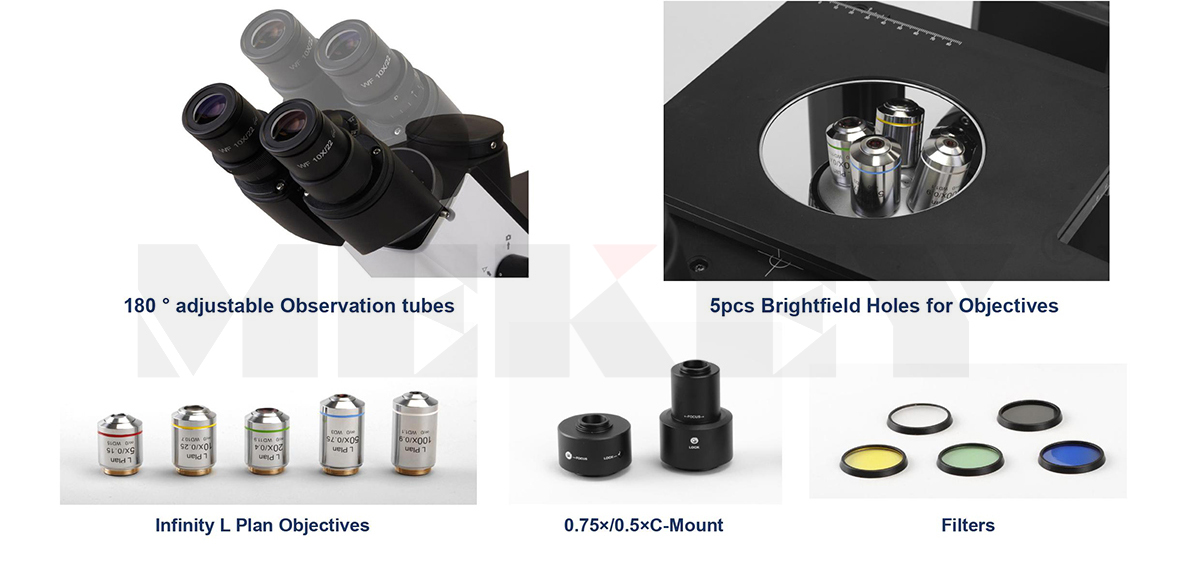

- Observation tubes can be adjusted up and down 180 ° to accommodate with different users
- High quality Reflected Illumination system
- Light source 12V/50W halogen lamp (optional 5W LED), adjustable Light Intensity
- Adopt safe electrical system: low voltage DC input 12V5A
- Optional camera and computer software for observing, taking graphs, data management
- Available upgrading with various functions & accessories to adapt to more application
