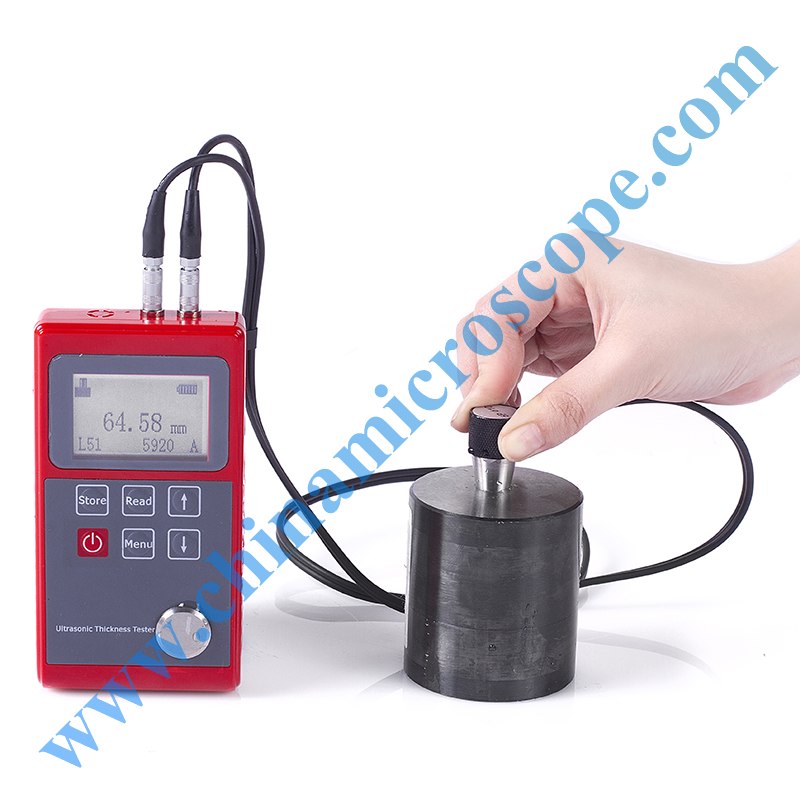

MIC-L320/321/322 Ultrasonic Thickness Tester
Function & Feature:
Display: LCD with LED backlight .The brightness and the contrast of the LCD is adjustable.
Display contents: thickness value, coupling condition, power state, CAL calibration state, sound velocity.
Able to measure the ultrasonic velocity in turn if the thickness value is known in order to improve the measurement precision.
Zero adjustment: auto returning to zero when you press the key after the probe is put on the specimen.
Simply and easily operated.
Nonlinear correction, automatic compensation, in order to improve the measurement accuracy.
The test block of measuring sound velocity of known thickness.
Battery information indicates the rest capacity of the battery,Auto sleep and auto power off function to conserve battery life.
Optionalsoftware to process the memory data on the PC.
Alarm function: setting the measurement limit and alarming for the results beyond the limit.
Application Fields:
Widely used in petroleum, chemical industry, metallurgy, shipbuilding, aerospace and other fields.
Measuring Material:
Adapted to measure the thickness of good conductor for ultrasonic, such as metal(steel, cast iron, aluminum, copper), plastic, ceramic, glass, glass fiber and so on.
Technical Specification
Model | MIC-L320 | MIC-L321 | MIC-L322 | ||
Measuring range(mm) | 0.7~252 | ||||
Resolution(mm) | 0.1 | 0.01 | |||
Accuracy(mm) | ±(1%H+0.1), H= thickness of the testing object | ||||
Velocity range(m/s) | 5920 | 1000~9999 | 1000~9999 | ||
Velocity measurement | √ | ||||
English Menu | √ | ||||
LED backlight | √ | ||||
Operating temperature | -10℃~60℃ | ||||
Dampness | 20%~90% | ||||
Dimensions | 130×70×25mm | ||||
Power supply | 2 AAA alkaline batteries | ||||
Weight | 200g | ||||
Standard Delivery | Unit Probe Matrix,Probes,Coupling agent | ||||
Optional Accessories | Probes,Coupling agent |
